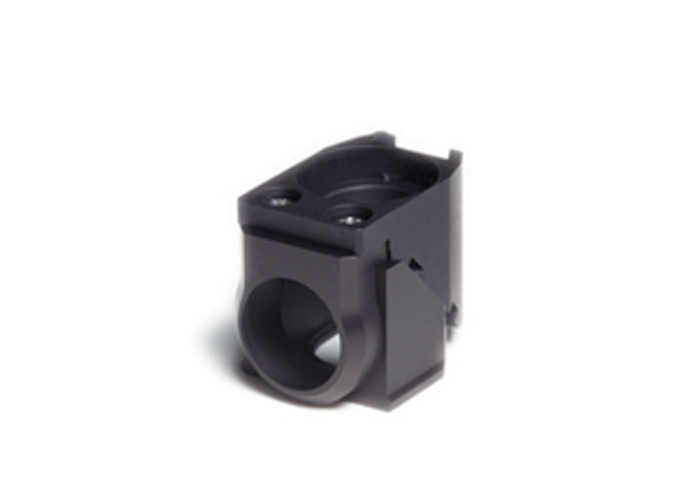

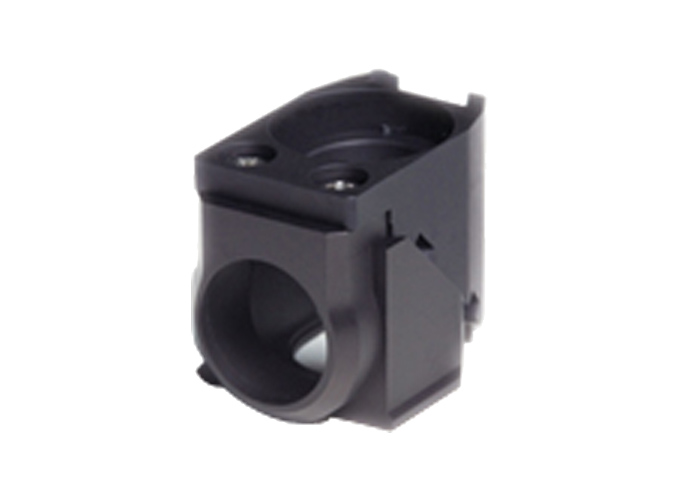

DM-K (“Large”) Fluorescence Filter Holder for Leica Microscopes
General information
| Specification | Value |
| Microscope Manufacturer | Leica |
| Compatible Microscope(s) | DM-2000, DM-2500, DM-3000, DMI3000 B, DM-4000, DMI4000 B, DM-5000, DM-5500, and DM-6000, DMI6000 B |
Filter Size Information
| Specification | Value |
| Exciter Diameter | 21.8 mm |
| Exciter maximum thickness | 5.0 mm |
| Emitter Diameter | 23.3 mm |
| Emitter maximum thickness | 5.0 mm |
| Beamsplitter Dimensions (L x W) | 22.0 mm x 29.0 mm |
| Beamsplitter maximum thickness | 1.1 mm |
| Note | This cube can be purchased individually or with filters. When ordering, specify "LDMK" and if you would like complimentary filter mounting to be performed by our certified staff |
Assembly Instructions
| Specification | Value |
| Documentation | Download assembly instructions |
亲们请注意：滤光片支架没有全部展示在店铺，本店铺里没找到合适您用的，请直接联系店主索取更详细的资料或者可以自行登录到semrock网挑选您适合的产品之后联系我们店主！
注意事项:
我们很高兴你能和我们合作。为了节省你的时间，在选择产品时，请查看参数或与我们的销售沟通，避免你购买的产品，因参数与你的使用要求不一致，耽误你的工期进度。我们再次感谢你的支持。
