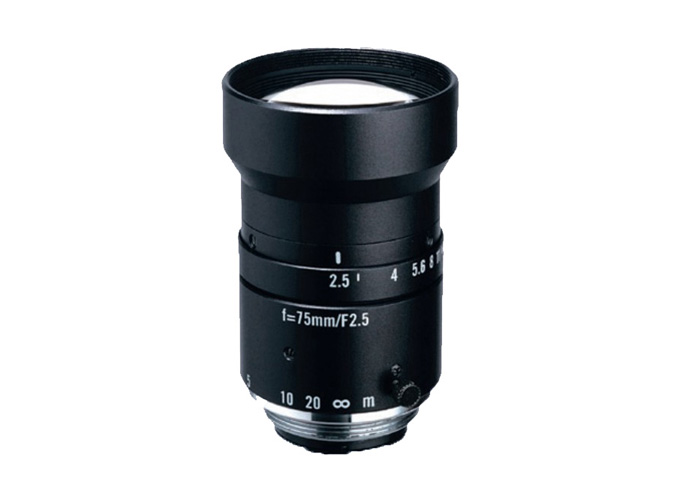

| Model | LM75JC | |
| Focal length(mm) | 75 | |
| Image size(mm) | 2/3"(Φ11) | |
| Iris range(F-stop) | F2.5-F22 | |
| Focusing range(m) | 1.2-∞ | |
| Control | Iris | Manual |
| Focus | Manual | |
| Shooting range at M.O.D. | 50.8(H)×38.1(V) | |
| Angle of view | 2/3 inch | 6.7×5.0 |
| (degree) | 1/2 inch | 4.9×3.7 |
| 1/3 inch | 3.7×2.8 | |
| Resolution(Center, Corner) | 100lp/mm,60lp/mm | |
| Distortion(TV) | −0.1% | |
| Back focus in air(mm) | 18.0 | |
| Mount | C-mount | |
| Filter thread(mm) | M34×P0.5 | |

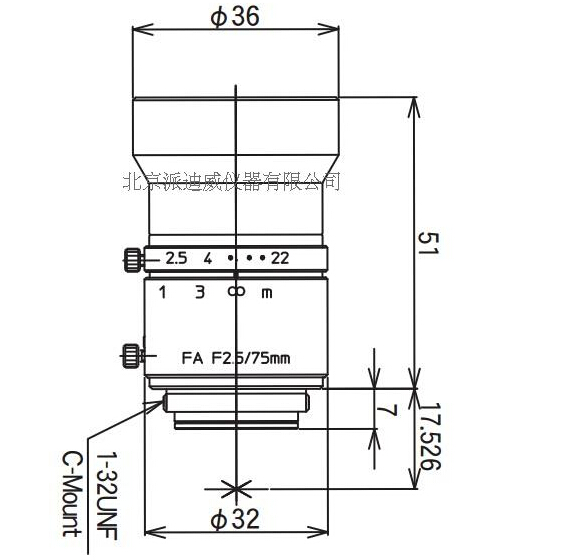

| Size(mm) | Φ36×51 | |
| Weight(g) | 105 | |
| Temperature range | −10ºC-+45ºC | |
Specifications are subject to change without notice.
