规格:
服务:
常见问题:

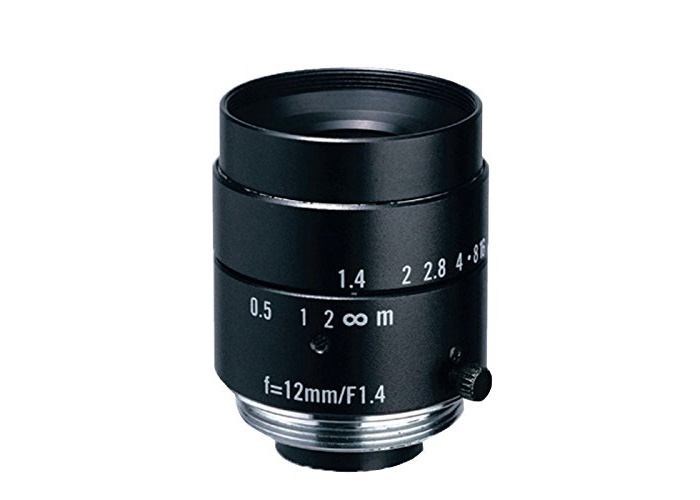

Model | LM12JC | |
Focal length(mm) | 12 | |
Image size(mm) | 2/3"(Φ11) | |
Iris range(F-stop) | F1.4〜F16 | |
Focusing range(m) | 0.1〜∞ | |
Control | Iris | Manual |
Focus | Manual | |
Shooting range at M.O.D. | 237(H)×173(V) | |
Angle ofView (degree) | 2/3 inch | 42.5×31.7 |
1/2 inch | 30.7×23.0 | |
1/3 inch | 23.0×17.2 | |
Resolution(Center, Corner) | 100lp/mm,60lp/mm | |
Distortion(TV) | −2.5% | |
Back focus in air(mm) | 11.12 | |
Mount | C-mount | |
Filter thread(mm) | M27×P0.5 | |

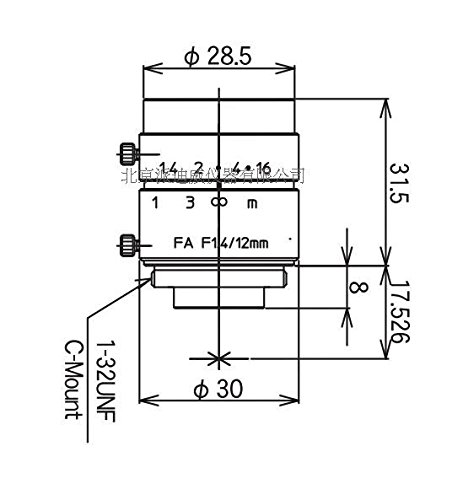

Size(mm) | Φ30×31.5 | |
Weight(g) | 63 | |
Temperature range | −10℃〜+45℃ | |
Specifications are subject to change without notice. |
注意事项:
我们很高兴你能和我们合作。为了节省你的时间,在选择产品时,请查看参数或与我们的销售沟通,避免你购买的产品,因参数与你的使用要求不一致,耽误你的工期进度。我们再次感谢你的支持。
