Model | LMVZ166HC | |
Focal length(mm) | 16〜64(4×) | |
Image size(mm) | 1"(Φ16) | |
Iris range(F-stop) | F1.8〜16 | |
Focusing range(m) | 1.0〜∞ | |
Control | Iris | Manual |
Focus | Manual | |
Angle ofView (degree) | 1 inch | W45.9×34.2/T11.7×8.8 |
2/3 inch | W31.3×23.4/T8.1×6.1 | |
1/2 inch | W22.7×17.0/T5.9×4.4 | |
Distortion(TV) | W−3.4%/T0.2% | |
Back focus in air(mm) | W28.2/T33.6 | |
Mount | C-mount | |
Filter thread(mm) | M58×0.75 | |

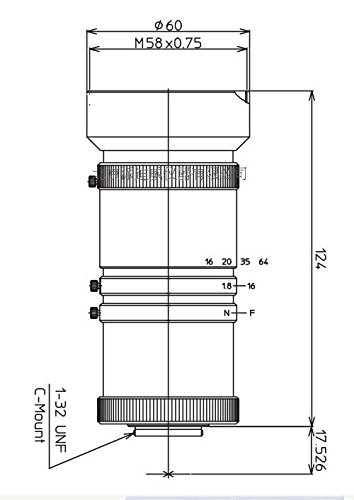

Size(mm) | Φ60×124 | |
Weight(g) | 370 | |
Temperature range | −10℃〜+45℃ |
Specifications are subject to change without notice.
