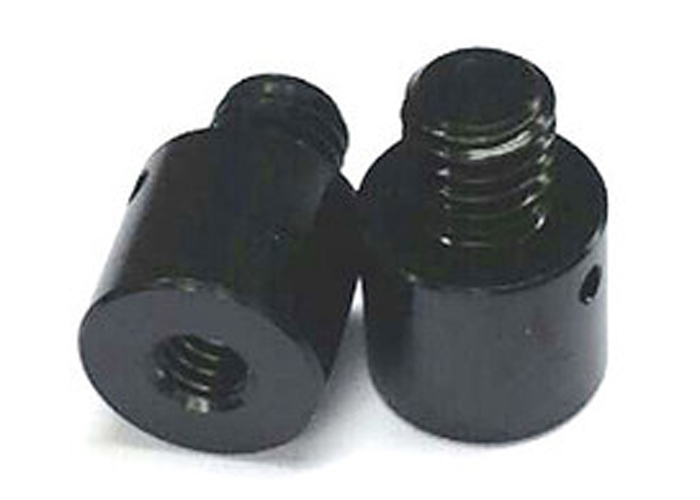

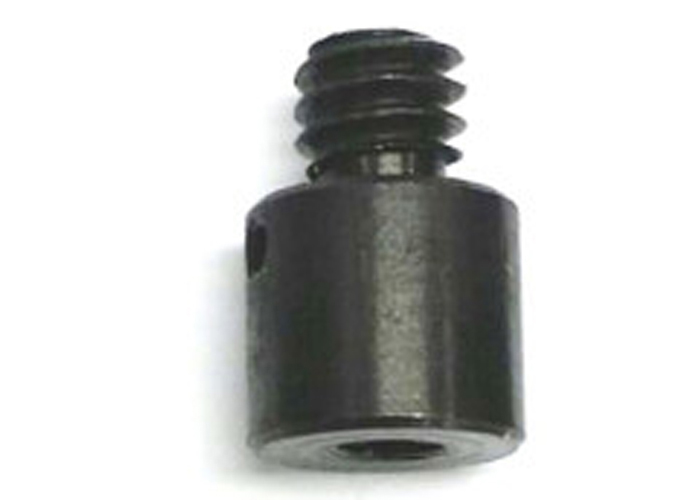

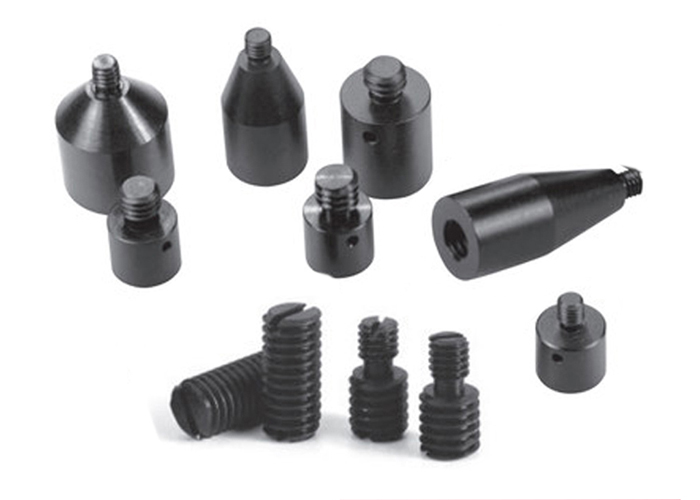

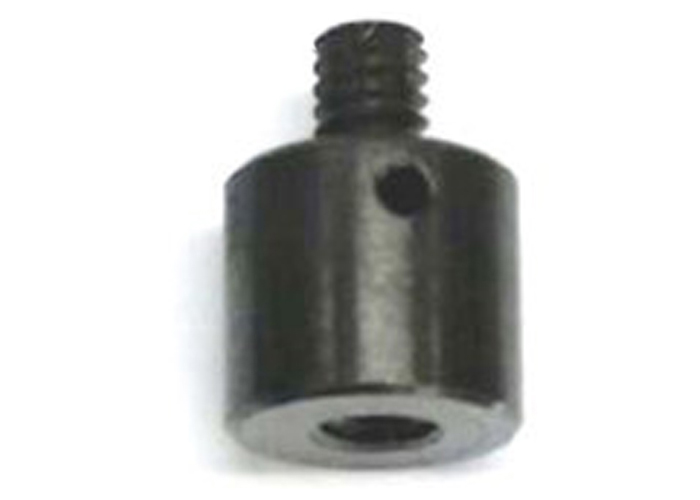

产品名称: PJJ03连接件转接头变径螺钉转变螺丝可变光学转接钉

规格:

单位：mm

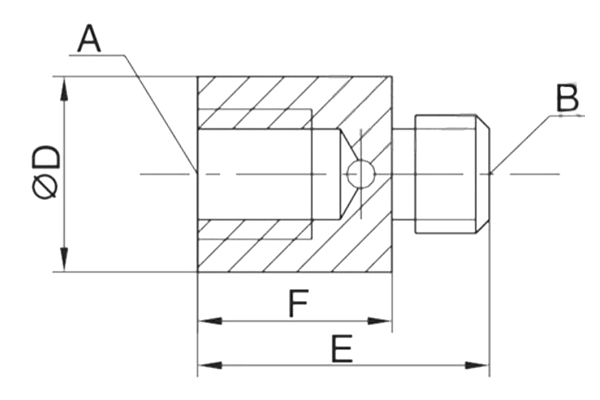

Model	A-B	φD	F	E	weight（g）
PJJ03-102	8-32toM4	10	9	14	2
PJJ03-103	8-32toM6	10	9	15	2
PJJ03-201	1/4”-20to8-32	10	10	15	2
PJJ03-202	1/4”-20to M4	10	10	15	2
PJJ03-203	1/4”-20toM6	10	10	16	4
PJJ03-301	M4 to 8-32	10	9	14	2
PJJ03-302	M4 to1/4”-20	10	9	15	2
PJJ03-303	M4 to M6	10	9	15	2
PJJ03-401	M6 to 8-32	10	10	15	2
PJJ03-402	M6 to1/4”-20	10	10	16	2
PJJ03-501	M10×1 to8-32	13	15	20	6
PJJ03-502	M10×1to M4	13	15	20	6
PJJ03-503	M10×1to1/4”-20	13	15	21	6
PJJ03-504	M10×1toM6	13	15	21	7
